Machine

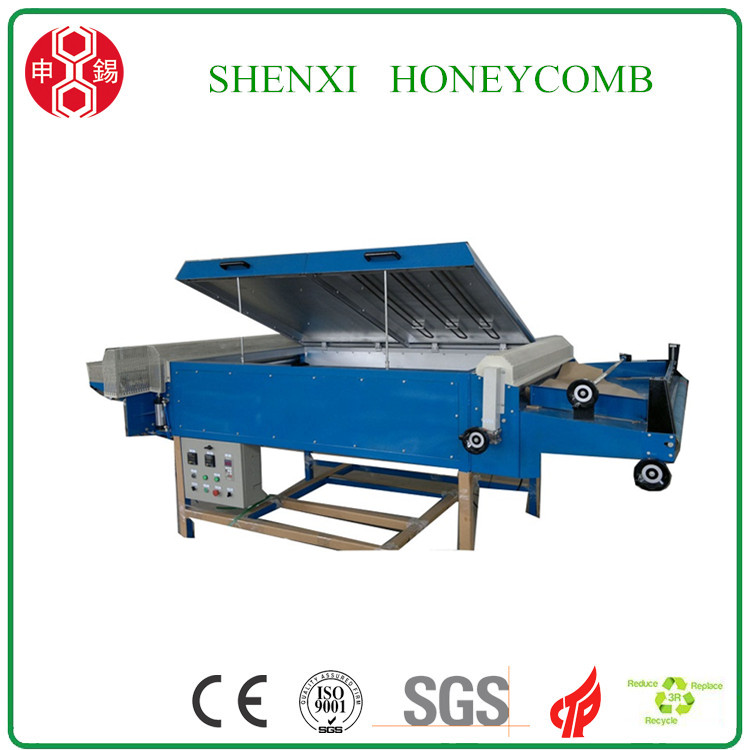

 honeycomb expanding machine

Type

HEM-1300-D

HEM-1300-B

Effective width of core paper(expanded)

0-1200mm

Function

Expanding , heating, trim,calibrating and Cutting,

Expanding ,heating,  and Cutting

 Speed

0.6-4m/min

Honeycomb core feeding in the oven

Chain with needles take and drive honeycomb core beginning to cutting

No drive inside oven

Largest Input width

1600mm

Largest Output width

1200mm

Thickness of honeycomb

10-70mm

Paper

120-180g/m2

Cell size

5-40mm

Temperature control

Control automatically

Heating power

18kw

Motor power

2.2kw

0.2kw

Trim cut

Available

none

Trim blades qty

3

0

Installation power

20.2kw

18.2kw

 control

PLC (Delta) system

Dimension

4500X2200X1300mm

3850X2200X1350mm

Weight

1000kg

800kg

Air supply

4-6kg/cm3

Voltage

3~, 220V/60Hz
